Features:

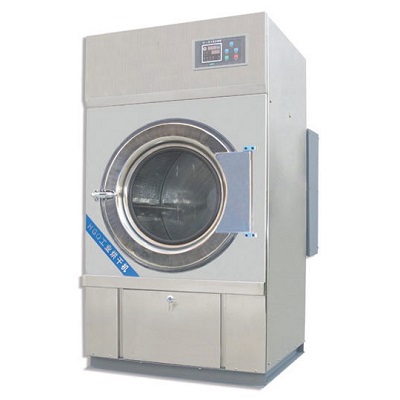

-- HGQ model industrial full automatic dryer adopts high thermal efficiency superpower heater, full utilization of energy. Large door opening makes loading and unloading easy.
--Large dust collector guarantees the air duct unobstructed. High quality stainless steel dryer drum, no corrosion, no harm to linens. Full automatic touch controller, easy to set drying period and temperature.
Models and Specifications:
| Model |
HG(Q)-15 |
HG(Q)-25 |
HG(Q)-35 |
| Rated Drying Capacity |
15 |
25 |
35 |
| Rolling Container Dimension |
Ø760×650 |
Ø960×650 |
Ø960×1000 |
| Main Motor Power |
0.55 |
0.75 |
0.75 |
| Fan Motor Power |
0.55 |
0.75 |
0.75 |
| Electric Heating Power |
14 |
20 |
32 |
| Rated Voltage |
380 |
380 |
380 |
| Steam Pressure |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| Steam Consumption |
40-50 |
50-60 |
60-70 |
| Dimension |
840×1200×1620 |
1060×1200×1960 |
1060×1550×1960 |
| Installation Dimension |
800×760 |
1020×770 |
1020×1100 |
| Net Weight |
320 |
400 |
450 |
| Model |
HG(Q)-50 |
HG(Q)-70 |
HG(Q)-100 |
| Rated Drying Capacity |
50 |
70 |
100 |
| Rolling Container Dimension |
Ø1200×870 |
Ø1280×890 |
Ø1500×1100 |
| Main Motor Power |
1.1 |
1.1 |
2.2 |
| Fan Motor Power |
1.1 |
1.1 |
2.2 |
| Electric Heating Power |
35 |
44 |
50 |
| Rated Voltage |
380 |
380 |
380 |
| Steam Pressure |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| Steam Consumption |
70-80 |
80-100 |
120-150 |
| Dimension |
1310×1500×2200 |
1420×1600×2300 |
1650×1850×2430 |
| Installation Dimension |
1265×1000 |
1365×1050 |
1580×1250 |
| Net Weight |
550 |
600 |
1000 |
|
|
