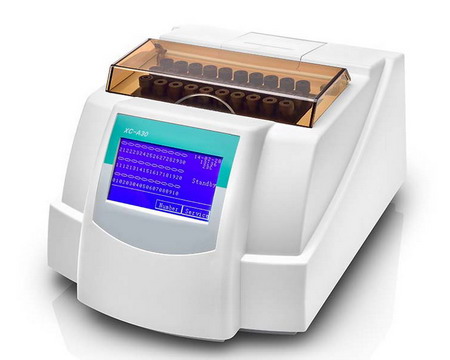

XC-A30 ESR Analyzer

Features:
- Random access
- Up to 30 tubes can be scanned simultaneously
- Throughput: 60 samples /hour
- Temperature compensation refer to 18 degree automatically
- ESR curve display and print-out
- Touch screen , large LCD display
- Internal thermal recorder

Specificatioin

Area of application

Erythrocyte sedimentation rate analysis

Measuring principle

Infrared barrier

Reading channel

30

Loading capability

Up to 30 samples at a time

Loading pattern

Random

Measuring time

30 minutes or 60 minutes selectable

Throughput

up to 60 samples per hour

Analysis result

In Westergren ESR value (mm/1h)

Temperature compensation

Refer to 18°C automatically

Reading resolution

0.2mm

Reproducibility

< 0.3% or 2mm/1h

Result resolution

1mm/1h

Blood level range

50mm~64mm

Display

LCD screen with backlight

Input

Touch screen

Interface

RS-232 serial port

Printer

Internal thermal recorder

Other Models:

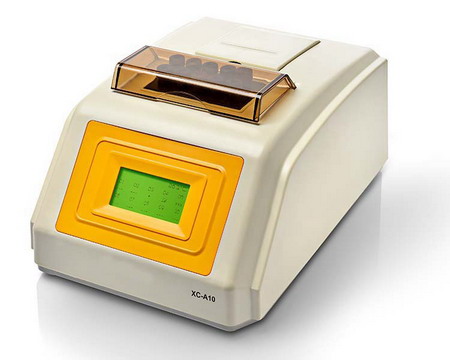

XC-A10 10 Reading Channels
XC-A30 30 Reading Channels

Download Literature:
XC-A10 ESR Analyzer
XC-A30 ESR Analyzer
