Features:

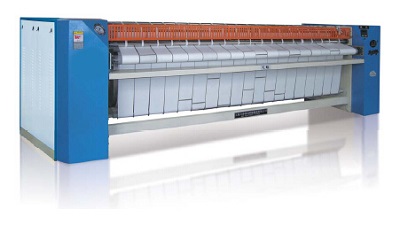

--YP model steam heated flatwork ironing machine is droved by frequency motor, the speed can be adjusted according to the temperature and linens thickness.
--The ironing roller is made of stainless steel, finished by grinding, to guarantee the minimum linens wear.
-- Stable performance guaranteed by speed reducer, chain drive, and stretching Device
--All the co-rollers are processed by galvanization, anti-corrosion.
Models and Specifications:
| Model |
YP8022 |
YP8025 |
YP8028 |
YP8030 |
| Max lroning Width (mm) |
2200 |
2500 |
2800 |
3000 |
| Ironing Speed |
0-6 |
0-6 |
0-6 |
0-6 |
| Max Ironing Temperature |
158 |
158 |
158 |
158 |
| Steam Pressure (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| Steam Consumption (kg/h) |
70 |
80 |
90 |
100 |
| Electric Heating Power (KW) |
27 |
30 |
32.4 |
36 |
| Motor Power (KW) |
1.5 |
1.5 |
1.5 |
1.5 |
| Rated Voltage (V) |
380 |
380 |
380 |
380 |
| Dimension(L.W.H) (mm) |
3550×1500×1350 |
3750×1500×1350 |
4050×1500×1350 |
4250×1500×1350 |
| Net Weight (kg) |
2500 |
2800 |
3100 |
3300 |
| Model |
YP28022 |
YP28025 |
YP28028 |
YP28030 |
| Max lroning Width (mm) |
2200 |
2500 |
2800 |
3000 |
| Ironing Speed |
0-22 |
0-22 |
0-22 |
0-22 |
| Max Ironing Temperature |
158 |
158 |
158 |
158 |
| Steam Pressure (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| Steam Consumption (kg/h) |
100 |
110 |
120 |
120 |
| Electric Heating Power (KW) |
44 |
46 |
50 |
60 |
| Motor Power (KW) |
2.2 |
2.2 |
2.2 |
2.2 |
| Rated Voltage (V) |
380 |
380 |
380 |
380 |
| Dimension(L.W.H) (mm) |
3550×2100×1350 |
3750×2100×1350 |
4050×2100×1350 |
4250×2100×1350 |
| Net Weight (kg) |
3600 |
3800 |
4000 |
4200 |
|
|
