| This series diesel generator set choose the domestic famous brand Ricardo series diesel engine as the dynamic force, with the importing of the technology of Ricardo Company (U.K), the engine features in low fuel consumption rate, good dynamic performance, safety and reliable
This series generator set is widely used as major or backup power supply in fieldwork, high building, super market, factory, ore yard, oil field, high road, harbor, countryside, and so on.
Features:
1. No-load voltage setting range: >(95-105%)
2. Steady state voltage regulation rate: <1%
3. Transient state voltage regulation rate: <-15%-20%
4. Voltage recover time:< 2s
5. Voltage fluctuation rate: < 0.5%
6. Steady state frequency regulation rate: <5%
7. Transient state frequency regulation rate: <10%
8. Frequency stabilization time: <3s
9. Line-voltage waveform sinusoidal distortion rate: <2.5%
10. Voltage fluctuation rate (between cold state and hot state) <2%

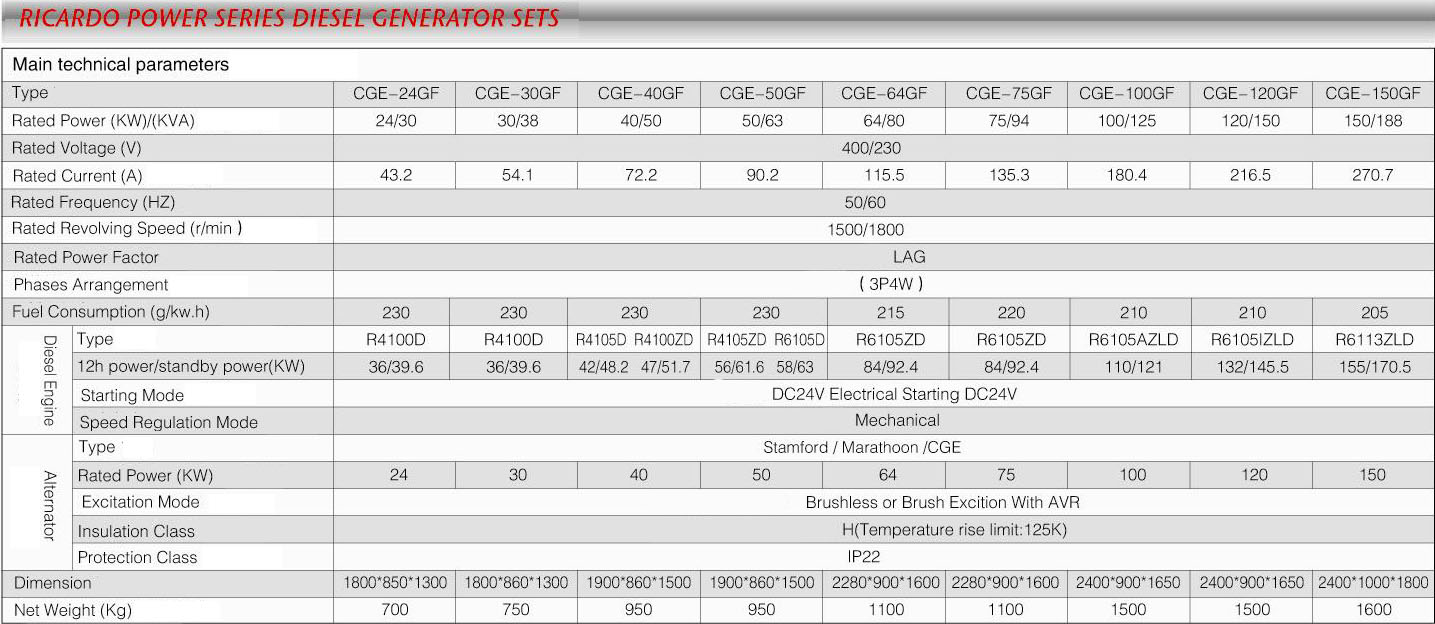

Specifications:
Click on picture to enlarge the specifications
|
|
